Adhering to the European design concept, the new generation of CNC bending machine with simple appearance, practical efficiency, stability and reliability, high cost performance and low failure rate.
|
Name |
Unit |
Parameter value
|
Note
|
|
|
Nominal pressure |
kN |
1100 |
|
|
|
Bending length |
mm |
3200 |
|
|
|
Distance between columns |
mm |
2700 |
Larger processing range |
|
|
Slider Max Stroke |
mm |
210 |
Shaped parts have a wider range |
|
|
Opening height |
mm |
475 |
|
|
|
Loading height |
mm |
600 |
Shaped parts have a wider range |
|
|
Throat depth |
mm |
400 |
|
|
|
Slider moving speed |
Drive in |
mm/s |
180 |
Fast down |
|
pressing |
mm/s |
10 |
High speed |
|
|
Return |
mm/s |
140 |
High-speed rise |
|
|
Back gauge X axis |
Stroke |
mm |
700 |
|
|
Maximum speed |
mm/s |
350 |
|
|
|
Back gauge R axis |
Stroke |
mm |
200 |
|
|
Maximum speed |
mm/s |
80 |
|
|
|
Back gauge Z axis |
Stroke |
mm |
2500 |
|
|
Maximum speed |
mm/s |
20 |
|
|
|
Machine accuracy |
Slider Y1.Y2 repeat positioning accuracy |
mm |
≤±0.01 |
|
|
Slider Y1.Y2 repeat positioning accuracy |
mm
|
≤±0.01
|
|
|
|
Back gauge X positioning accuracy |
mm |
≤±0.025 |
|
|
|
Back gauge X repeat positioning accuracy |
mm |
≤±0.05 |
|
|
|
Back gauge R positioning accuracy |
mm |
≤±0.025 |
|
|
|
Repeated positioning accuracy of back gauge R |
mm |
≤±0.05 |
|
|
|
Bending angle error |
′ |
±30 |
|
|
|
Optical Ruler Resolution |
mm |
0.005 |
|
|
|
Number of CNC axes |
|
4+1 |
Y1、Y2、X、R+V |
|
|
Number of electric shafts |
|
2 |
Z1、Z2 |
|
|
Servo motor |
kw |
7.5 |
|
|
|
Dimensions |
mm |
3700x1700x2800 |
|
|
|
Weight |
kG |
approximately 8500 |
|
|
|
Optional robot |
|
|
|
|
|
Model |
|
KR210R2700 |
|
|
|
Maximum working range |
mm |
2696 |
|
|
|
specified load |
kG |
210 |
|
|
|
Shaft 1 Shaft 2 Shaft 3 Rated Additional Load |
kG |
50 |
|
|
|
Maximum total load |
KG |
260 |
|
|
|
Position repeat accuracy |
mm |
±0.06 |
|
|
|
Number of controlled axes |
|
6 |
|
|

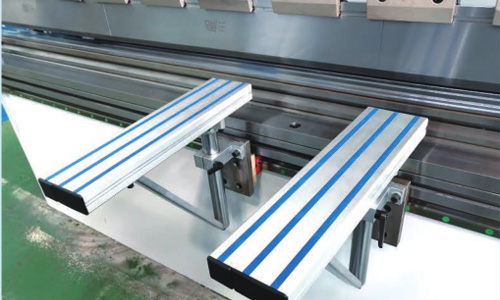

Moving forward bracket

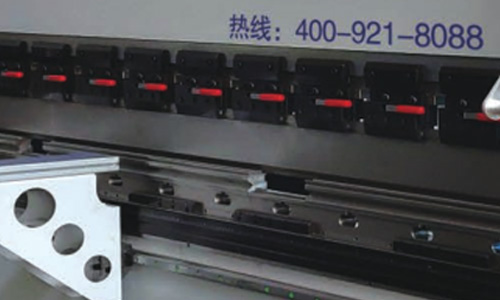

Precision quick clamping device

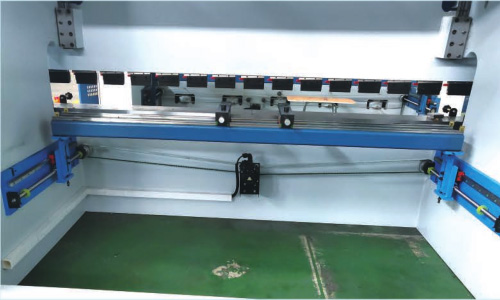

High precision and stable back gauge systems

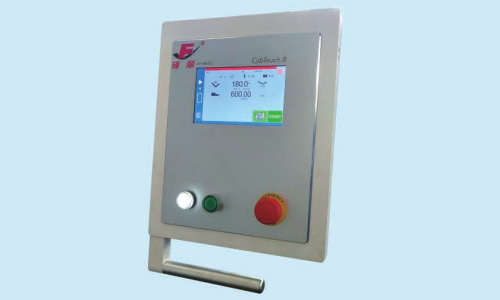

CybTouch 8 CNC

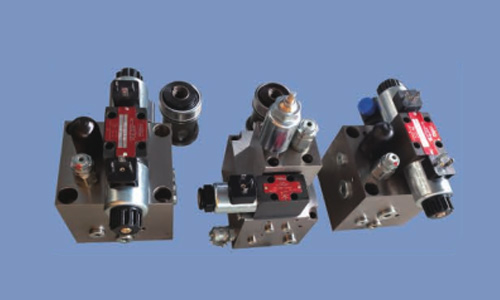

High-quality hydraulic integrated system

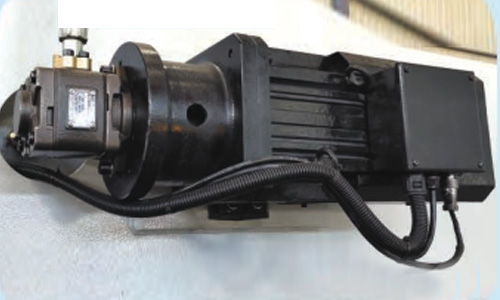

Electric motor
|
Mode |
Nominal Pressure |
Max. Bending width |
Distance between uprights |
Throat depth |
Cylinder stroke |
Opening height |
Die setting height |
Oil volume |
Speed (mm/S) |
Dimensions (Length x width x height) |
||
|
KN |
mm |
mm |
mm |
mm |
mm |
mm |
L |
Drive in |
pressing |
Return |
mm |
|
|
FLS-50/2000 |
500 |
2000 |
1500 |
300 |
170 |
450 |
580 |
34.5×2 |
200 |
15 |
200 |
2500x1500x2500 |
|
FLS-80/2500 |
800 |
2500 |
2000 |
300 |
170 |
450 |
580 |
34.5×2 |
200 |
15 |
200 |
3000x1600x2600 |
|
FLS-110/2500 |
1100 |
2500 |
2000 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
3000x1700x2700 |
|
FLS-110/3200 |
1100 |
3200 |
2700 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
3700x1700x2700 |
|
FLS-110/4000 |
1100 |
4000 |
3600 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
4600x1700x2750 |
|
FLS-130/2500 |
1300 |
2500 |
2000 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
3000x1750x2750 |
|
FLS-130/3200 |
1300 |
3200 |
2700 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
3700x1750x2750 |
|
FLS-130/4000 |
1300 |
4000 |
3600 |
400 |
210 |
500 |
630 |
34.5×2 |
200 |
15 |
200 |
4600x1750x2800 |
|
FLS-170/3200 |
1700 |
3200 |
2700 |
400 |
210 |
500 |
630 |
50×2 |
200 |
15 |
200 |
3700x1850x2800 |
|
FLS-170/4000 |
1700 |
4000 |
3600 |
400 |
210 |
500 |
630 |
50×2 |
200 |
15 |
200 |
4600x1850x2850 |
